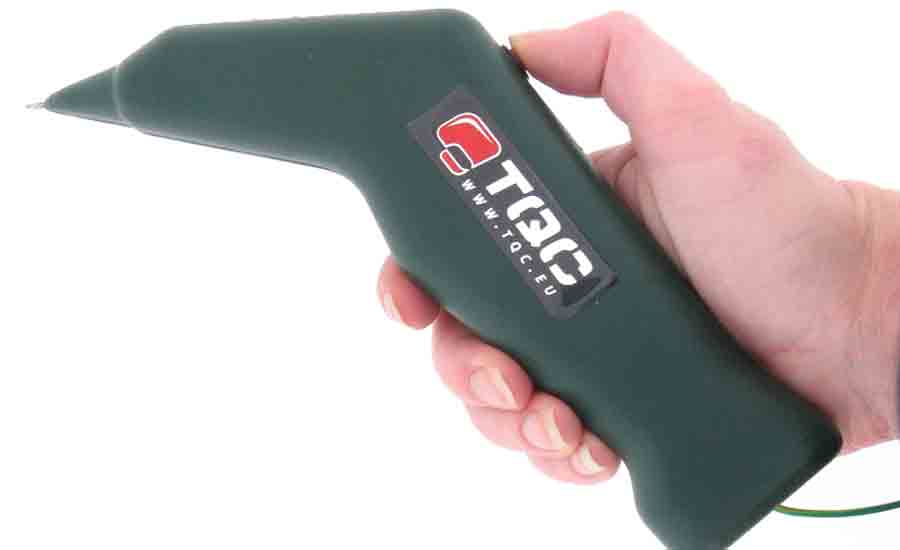

This new conveyor ground test with five steps informs users whether items to be painted are sufficiently grounded. Especially designed for electrostatic coating applications, the low-cost, easy-to-use ground check is battery operated. It is good for use in automotive and industrial settings.

Simply connect the cable crocodile clip to a known good earth point. Then point instrument to part to be painted, touching the bare metal surface. Press the button. Results are indicated through two green, one yellow and two red lamps. The instrument’s performance can be tested by touching the ground clamp with the metal tip of the instrument. One green LED should light up when the button is pressed.
