Optimizing Diaphragm Performance When Pumping Titanium Dioxide

By James Farley
Optimizing Diaphragm Performance When Pumping Titanium Dioxide
All photos courtesy of Wilden Pump & Engineering Company
Optimizing Diaphragm Performance When Pumping Titanium Dioxide
All photos courtesy of Wilden Pump & Engineering Company
Optimizing Diaphragm Performance When Pumping Titanium Dioxide
All photos courtesy of Wilden Pump & Engineering Company
Optimizing Diaphragm Performance When Pumping Titanium Dioxide
Optimizing Diaphragm Performance When Pumping Titanium Dioxide
Optimizing Diaphragm Performance When Pumping Titanium Dioxide
April 8, 2022

There is scarcely a painted surface in the world — be it house, portrait or child’s toy — that has not been covered by a paint containing titanium dioxide, or TiO2, which is a fine white powder that is produced most often through the mining of the mineral ilmenite. The reason that TiO2 is used as a white pigment in most of the world’s paints and coatings is simple: it possesses the highest refractive index of any material in the world. In other words, because TiO2 does not absorb visible light, any paint containing it has a high level of opacity, or hiding power, which is a needed characteristic for a high-performing paint or coating.

Because of its indispensability as a paint and coating component, the global TiO2 market is a robust one, which is buoyed by the fact that it is also commonly used in the production of plastics, paper, pharmaceuticals, inks, food colorings and cosmetics, among many others. In fact, according to market-research firm Research and Markets and its “Global Titanium Dioxide (TiO2) Market 2019-2023” report, the TiO2 market will experience a compound annual growth rate (CAGR) of 4% through the year 2023.

The size and importance of the global TiO2 market make it imperative that paint and coatings manufacturers identify and deploy a pumping technology that can reliably introduce it to the production process and then transfer the finished paints and coatings in the high volumes that are required to meet the demands of strict composition characteristics and production schedules. This article will illustrate how positive displacement air-operated double-diaphragm (AODD) pumps have risen to the forefront as a first-choice technology for TiO2 pumping, with a new generation of diaphragm designs adding to their ability to deliver optimized TiO2-handling performance.


The Challenge

In paint and coatings plants, TiO2 is introduced to the production process as a high-viscosity slurry. AODD pumps have become an obvious choice for TiO2 transfer because they can handle abrasive liquids of higher viscosities that may also contain large solid particles. Their method of operation also gives them the ability to self-prime, deadhead and run dry with low shear, which enables them to quickly reach and maintain desired flow rates throughout the entire duration of the product run while also being able to reliably handle shear-sensitive materials.

While AODD pumps can capably handle the general challenges of transferring TiO2, there is one specific challenge that must be overcome – though TiO2 appears to be a very fine powder, it is very abrasive in slurry form, which poses a threat to the longevity of the AODD pump’s diaphragms. Specifically, the high level of abrasiveness of TiO2 slurry exacerbates a phenomenon known as “outer piston abrasion,” which is a primary failure mode for AODD pumps. Outer piston abrasion happens with all standard diaphragm designs that rely on an inner and outer piston to hold the diaphragm in place. During its operation, the diaphragm flexes around the outer piston, causing normal wear of the diaphragm at the point where they connect. Add a highly abrasive slurry like TiO2 and the connection acts like sandpaper on the diaphragm, dramatically impacting its service life. This abrasion, if left unchecked, will cause the diaphragms to fail prematurely. The result of diaphragm failure is increased pump downtime, and higher maintenance, repair and replacement costs — and you can add cleanup costs to the equation if a product leak occurs. In these days where reliable throughput and product containment are at a premium as manufacturing facilities look to optimize their operating costs, any interruption in the production schedule or costs associated with a product leak can be deleterious to the manufacturer’s bottom line.



The Solution

In the realm of AODD pumps, Wilden® AODD pumps, the operating principle of which was invented by Jim Wilden 65 years ago, has long set the standard in efficient, effective and safe TiO2 pumping. Today, Wilden offers a full range of diaphragm pumps that are ideally equipped for use in paint and coatings production. The Pro-Flo® SHIFT Series of bolted and clamped metal and plastic pumps are outfitted with the revolutionary Pro-Flo SHIFT Air Distribution System (ADS) and operate with world-class efficiency in paint applications.

While Wilden AODD pumps have earned their stripes over the years as a go-to technology for TiO2 pumping, it is a recent advancement in diaphragm technology that further differentiates the pumps from the competition — the Chem-Fuse diaphragm.

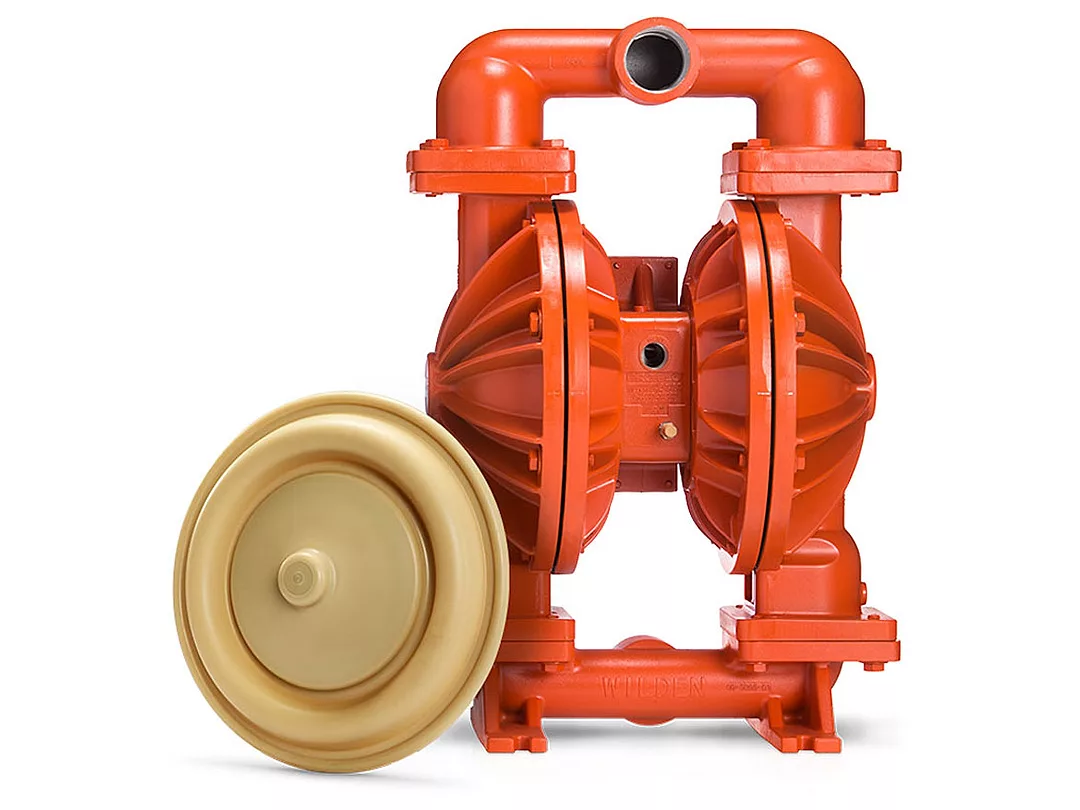

The design of the Chem-Fuse diaphragm makes outer-piston abrasion irrelevant. Specifically, ChemFuse diaphragms feature an innovative, one-piece Integral Piston Diaphragm (IPD) design that encases the outer piston within the diaphragm material itself. The elimination of the outer piston means that failure-causing abrasion can no longer occur. Moreover, it also eliminates a potential leak point around the outer piston, further improving pump reliability. The result of this is that Chem-Fuse diaphragms can deliver dramatic improvement in service life when compared to traditional diaphragms that are used in AODD pumps that handle TiO2. The extension of service life in typical instances is usually two to three times that of old-school diaphragms, though Chem-Fuse life spans that can be up to 10 times more than normal have also been observed. Finally, the encapsulation of the outer piston in the diaphragm material allows Chem-Fuse diaphragms to handle higher inlet pressures than standard two-piece diaphragms. This performance improvement makes the Chem-Fuse diaphragm unparalleled for use in difficult applications like TiO2 pumping.

Chem-Fuse diaphragms are constructed of Wil-Flex™, which makes them 50% less expensive than laminated models. They can also be used in all Pro-Flo and ProFlo SHIFT Series 1" to 3" plastic and metal pumps from Wilden, which allows them to fit into any application.



Conclusion

It’s inherently obvious that the highest-performing paint and coatings feature titanium dioxide in their ingredient mix. It is also becoming increasingly obvious that Wilden Pro-Flo SHIFT AODD pumps featuring Chem-Fuse IPDs are the best choice to optimize the handling and transfer of TiO2. Because of its high, abrasive nature, TiO2 can put traditional two-piece diaphragms under extreme stress, leading to costly leak points, failure and downtime. Chem-Fuse diaphragms solve this conundrum through their integral-piston design, which entirely eliminates abrasion points, leading to a safer, cleaner, more reliable and more efficient pumping process. By extending diaphragm service life, Chem-Fuse allows for unprecedented optimization of TiO2-based paint and coating production.

For more information, e-mail James.Farley@psgdover.com.

KEYWORDS: diaphragms Pumps TiO2
