Spring 2003 Vol 5, No.1

Summary

Research has shown that high extrusion temperatures result in the most opaque powder coatings. The higher temperatures resulted in better TiO2 pigment dispersion, giving rise to increased opacity. This finding was true for both twin- and single-screw extruders.

Both coatings have a TiO2 volume concentration of 16.3%. The extrusion temperature for the powder coating was 100ºC.

Introduction

Due to an increasing trend toward thinner films1 in powder coatings, an investigation has been undertaken at Huntsman Tioxide to optimize the dispersion of TiO2 in powder coatings. If dispersion is improved, an improvement in opacity would also be expected. With very thin films, the efficient use of the TiO2 is very critical, as thinner films will highlight differences in opacity that would otherwise be masked because of the thickness of the film. Figure 1 shows how much more opacity TiO2 gives in an air-drying alkyd paint, compared to a powder coating based on the same TiO2 volume concentration. At a dry film thickness of 25 µm, the powder coating gives a contrast ratio of 89%, compared to 94% for the air-drying alkyd paint.

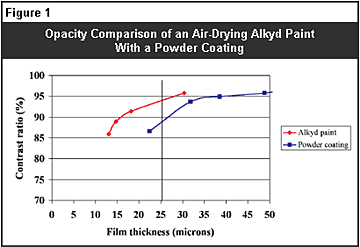

The difference between 94% and 89% contrast ratio is substantial and to some extent can be explained by the difference in resin refractive index. The refractive index of an air-drying alkyd resin is traditionally about 1.49, while for powder coating resins it is in the region of 1.55. The difference between 1.49 and 1.55 may not appear to be significant; however, it does have some effect, as shown in Figure 2, for a 25 µm dry film.

Even though, as Figure 2 shows, the resin refractive index can explain some of the scattering deficiency of the powder coating, there is still plenty of scope to further improve the opacity of these systems2.

In a previous study undertaken by Huntsman Tioxide3, the effect of pigment concentration, maximum powder particle size and film thickness on the optical performance of thin-film powder coatings has been studied. The results of this study showed that optimum film performance is achieved for film thicknesses of 40 to 50µm. The gloss, haze and leveling performance can be further improved by reducing the maximum powder particle size, while the opacity performance remains unaffected.

This study focuses on powder coating extrusion conditions4,5 and how they may affect the opacity of the powder coating.

Methodology

To explore the effect of extrusion conditions on the opacity of powder coatings, it was decided to limit the work to three extruder variables:
  • Feed rate
  • Screw speed
  • Operating temperature
The effect of extruder screw configuration6 was too large a subject for the scope of this project.

The following single- and twin-screw laboratory extruders were included in the work:

  • PRISM 16-mm twin screw (25 L/D)
  • Buss PCS30-11D single screw (11 L/D)
  • Buss PR46 single screw (7 L/D; used in the Huntsman Tioxide laboratories)
Throughout the trials, powder coatings were prepared using a standard Primid polyester powder coating formulation pigmented with a rutile grade of TiO2-TIOXIDE TR81. (Formulation and process details are given in the appendix.)

An accurate test method for assessing opacity was crucial to the success of the project. Over the years, work has been undertaken within the industry to develop such a test method for powder coatings7,8. The method described below, which was used for this project, is considered to be the most accurate. However, it should be noted that the method is also time-consuming.

Opacity determination of powder coatings-The powder coatings were applied to degreased, 125-µm clear-polyester sheets using a manual Gema Volstatic electrostatic spray unit with the voltage regulated at 90 KV negative.

The polyester sheets were attached to a degreased steel panel of the same size with metal clips. This method of panel assembly reduced the risk of buckling during application and baking. The metal backing panel also reduced static charge within the film and so aided the application of a uniform distribution of powder on to the polyester sheet.

Polyester sheets were coated with varying weights of powder to achieve differing film thicknesses from about 20 to 60µm. The applied films were then placed in an electrically heated circulating air oven and cured for 15 minutes at 180ºC.

Figure 3
Template for Film-Thickness Measurements
A Fischerscope Multi 650C Dry Film Thickness Gauge was used to measure the precise film thickness of the sprayed coatings using a template with three equidistant circles with a diameter of 25 mm (see Figure 3). This ensured consistent recordings of film thickness together with contrast ratio measurements from the same circular areas of the sprayed coatings. Approximately 10 readings were taken in each circle and then averaged.

The Yb and Yw values were subsequently measured for the same three circular areas of the powder coatings on a HunterLab ColorQUEST II colorimeter using black and white tiles, respectively.

From the Yb and Yw values the contrast ratios (Yb/Yw x 100) were then calculated. For each powder coating, graphs were plotted of contrast ratio vs. reciprocal film thickness to achieve straight-line plots. From this plot, the contrast ratio was recorded at a film thickness of 25µm, as illustrated in Figure 4.

Figure 5 gives an indication of the accuracy of the test method. A powder coating has been applied to polyester sheets at a series of varying film thicknesses and the contrast ratio measured. This whole process of application and measurement was then repeated.

Results

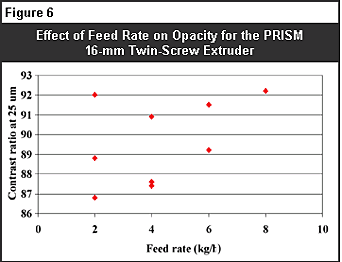

Effect of feed rate on opacity-The effect of feed rate on opacity was studied on both the PRISM 16-mm twin-screw extruder and the Buss PCS30-11D single-screw extruder. For both extruders, a relationship between feed rate and opacity could not be found. In Figure 6, the poor correlation is shown for the PRISM 16-mm twin-screw extruder.

At each chosen feed rate, several powder coatings were produced using different screw speeds; hence, several opacity results are shown for each of the 2, 4, 6 and 8 kg/h feed rates.

Effect of screw speed on opacity-Both the single- and twin-screw extruders were used for studying the effect of screw speed on opacity. For both screw types, some correlation was found between screw speed and opacity. In Figure 7, a comparison is shown between the opacity and screw speed for the powder coatings prepared on the twin-screw extruder.

It can be seen from Figure 7 that a broad range of opacities has been achieved. An opacity range from 87% to 92% is significant. At each chosen screw speed, several powder coatings were produced at different feed rates, hence several opacity results are shown for the 300-, 400- and 500-rpm screw speeds.

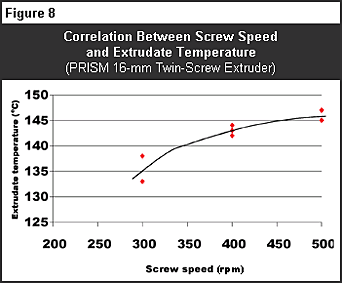

While operating the twin-screw extruder, the extrudate temperature was measured. As would be expected, as the screw speed was increased, the extrudate temperature was also increased, as shown in Figure 8.

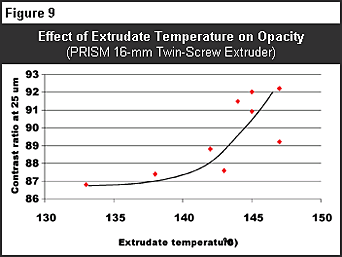

From the correlations observed in Figures 7 and 8, a good correlation would also be expected between extrudate temperature and opacity, as shown in Figure 9.

The effect of screw speed on opacity was not quite so obvious with the single-screw extruder. However, the results shown in Figure 10 suggest that the trend is toward higher opacity when the screw speed is increased. With the single-screw extruder, there is also an obvious correlation between screw speed and extrudate temperature (Figure 11).

Effect of operating temperature on opacity-Having seen how an increase in extrudate temperature can result in increased opacity, it was decided to investigate more closely the effect of the operating temperature on opacity. Using the Buss PCS30-11D extruder, four powder coatings were produced, where the operating temperatures were varied, while all other extrusion conditions were kept constant (screw speed = 300 rpm, feed rate = 6 kg/h). The Buss PCS30-11D allows for the temperature to be controlled across three different zones of the extruder, in the feed input zone and two parts of the main extrusion zone, Zone 1 and Zone 2, respectively, as shown in Figure 12. The effect of Zone 1 and Zone 2 temperature on opacity were assessed.

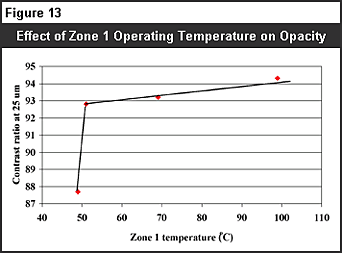

The results showed that the temperature in Zone 2 had no effect on the final opacity, while there did appear to be a relationship between the Zone 1 temperature and opacity, as shown in Figure 13.

The four powder coatings have resulted in a broad range of opacities, ranging from 87.7% to 94.3%, which is obviously significant. The results suggest that by increasing the temperature in Zone 1 to 100ºC, a higher opacity can be achieved. As the effect of the Zone 2 temperature was not critical, it suggests that the temperature in the first part of the extruder is much more critical.

As a consequence of the results in Figure 13, a further series of powder coatings was produced at different extruder temperatures on the Buss PR46 single-screw extruder, currently used in the Huntsman Tioxide laboratories. The Buss PR46 extruder does not have the same level of extrusion temperature control as the Buss PCS30-11D, but it does have the ability to control the temperature of the cooling jacket around the screw. Five powder coatings were produced by increasing the cooling-jacket temperature by 10ºC intervals, from 100ºC to 140ºC. To go above 140ºC would not be advisable because crosslinking would start to occur at about 150ºC.

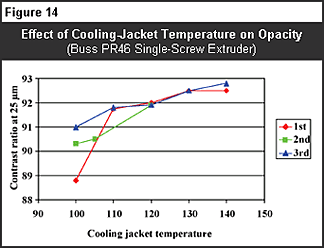

In Figure 14, the opacity of the five powder coatings is shown. Initially, when increasing the cooling-jacket temperature by just 10ºC, from 100ºC to 110ºC, a notable increase in opacity was noted (1st series). When increasing the temperature beyond 110ºC, an increase in opacity was still observed, but to a much lesser extent. To investigate the initial large increase in opacity, a further two series of powder coatings (2nd and 3rd series) were produced at extrusion temperatures ranging from 100ºC and 140ºC.

In both of these latter series, the same large increase in opacity was not found when increasing the extrusion temperature from 100ºC to 110ºC. Overall though, an increase in opacity was observed with an increase in temperature. On average, the opacity increased 1.5 to 2 units by increasing the temperature from 100ºC to 140ºC. This is not an insignificant increase when related to how much extra TiO2 would be needed in the powder coating to achieve this opacity increase (see Figure 2).

The difference in opacity between the powder coating produced at 140ºC and the opacity of an air-drying alkyd paint at the same TiO2 loading (about 94%) is not large. In fact, it's not much larger than the resin refractive index difference between the two systems.

To ensure that the reason behind this increased opacity with the increased extrusion temperature was not due to yellowing of the powder coating at the higher temperatures, the color of the powder coatings was measured.

Figure 15 shows that the higher extrusion temperatures do result in the slightly higher b values and hence slightly more yellow powder coatings. However, the difference in the b values between the powder coatings extruded at 100ºC and 140ºC is only 0.35, which is just visible. There is also a difference in L value between these two coatings. The powder coating extruded at 140ºC is the whitest, which relates well to the higher opacity found for this coating.

To investigate whether increases in opacity at the higher extrusion temperatures are due to better dispersion, viscosity measurements were conducted on the five powder coatings produced at extrusion temperatures ranging from 100ºC to 140ºC (see Figure 16). Viscosity is closely linked to dispersion performance. A low viscosity would indicate a better dispersion, due to better pigment wetting, as proposed by Washburn:

l2 = K t glv Cosq
2h

where, in the case of a powder coating:

1 = distance of solution penetration within the air cavities
h = viscosity of the molten powder
K = effective cavity radius
t = penetration time
glv = interfacial free energy coefficient for the molten powder-vapor transition
q = contact angle between the molten powder and the solid

The powder coating produced at the lower temperature of 100ºC has resulted in the highest viscosity, while the difference in viscosity between the four remaining powder coatings is negligible. The higher result for the powder coating produced at an extrusion temperature of 100ºC does suggest that the dispersion is poorer, which relates well to the lower opacity measured for this coating.

Discussion and conclusions

It has been shown that operating the extruder during powder coating production at as high a temperature as possible without causing crosslinking can give opacity advantages. The higher temperatures obviously result in better pigment dispersion, giving rise to the increase in opacity.

Most modern extruders allow for specific temperature control in several zones along the extruder screw itself. The temperature in the first part of the extrusion zone in the single-screw extruder proved to be more critical for the final product opacity than the temperature in the latter part of the extruder.

To apply these findings to production-scale extruders could be difficult with the older type of extruders, which rely on heat transfer from the barrel only. However, with the more modern extruders, which control the temperature mainly through the screw, which is much more accurate due to its smaller surface area, this should not be problematic.

The work has also confirmed the strong correlation between screw speed and extrudate temperature. By increasing the screw speed, an increase in extrudate temperature occurred, which resulted in increased product opacity.

It is interesting to note that the most opaque films were achieved by increasing the screw speed, which also resulted in more shear going into the product and higher final extrudate temperatures, while high opacities could be achieved just by increasing the operating temperature but keeping the screw speed, and hence shear, constant. This suggests that a high extruder operating temperature is more critical to the opacity result than increased shear.

The effect of feed rate on opacity was found to be insignificant.

The above findings were found to be true for both twin- and single-screw extruders. Neither screw type gave rise to significantly more opaque powder coatings than the other, which suggests that both extruders are able to disperse the pigment equally well.

Acknowledgements

Acknowledgements are due to PRISM (UK) and Buss (Switzerland) for their cooperation with the laboratory work for this project. Acknowledgements are also due to Stephen Seymour for his support in the laboratory.

Appendix

Formulation details

Production details

Premixing-The raw-material components of a powder coating formulation are premixed prior to extrusion to equalize the dry aggregate sizes of each ingredient in an attempt to ensure a more efficient dispersion.

All the standard formulation ingredients were premixed in a water-cooled Henschel mixer at a rotor speed of 1,800 rpm for five minutes.

Post extrusion-The chipped extrudate was ground in a Mini-Kek pin disk mill, after which the chipped extrudate was passed through a 200-mesh sieve to remove particles over 75µm, before spraying.
