Charles Ross & Son Co.

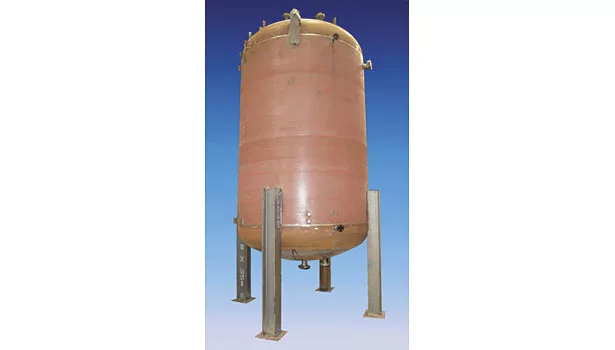

This carbon steel vessel has a full holding capacity of 9,750 gallons and is ASME-stamped for 50-psig internal pressure to full vacuum at 200 °F. The elliptical-style top and bottom heads include various-size flanges and couplings. Internal surfaces were thoroughly cleaned, dried and media blasted; exterior surfaces were also media blasted and coated with red oxide primer. Vessels are custom-built to meet exact specifications for pressure, temperature, material of construction, cover design, discharge assembly and access ports. E-mail firstname.lastname@example.org.
