Electric Walk-In Oven

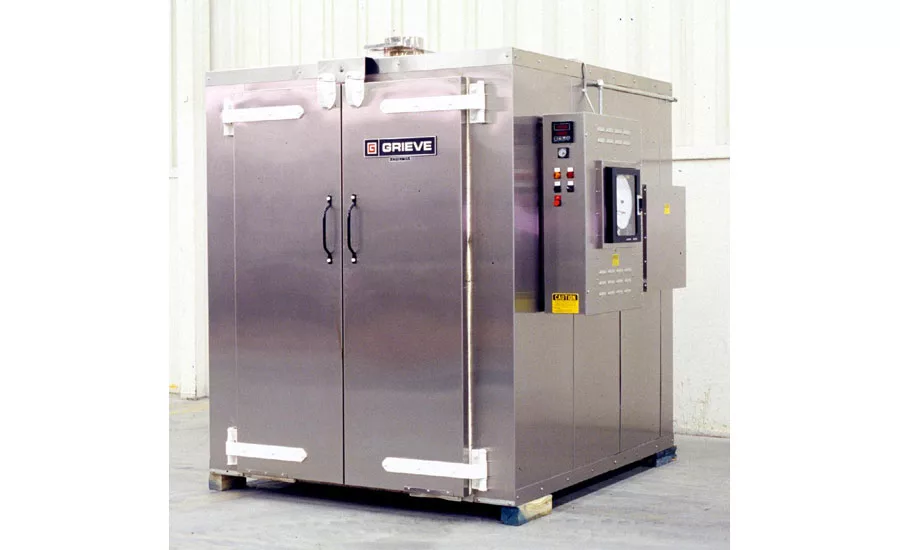

No. 941 is an electrically heated 750 ºF (~399 ºC) walk-in oven from Grieve, currently used for drying resin mixtures at the customer’s facility. Workspace dimensions on this oven measure 48”W x 48”D x 72”H. 60KW are installed in Incoloy-sheathed tubular elements to heat the unit, while a 4200 CFM, 3-HP recirculating blower provides horizontal airflow across the load.
This Grieve walk-in oven features 6” insulated walls throughout, type 304 2B stainless steel interior with continuously welded seams, stainless steel exterior with #4 brushed finish, and heavy-duty double front doors.
No. 941 also features a digital programming temperature controller and 10” diameter circular chart recorder onboard.
