Paint Spray Booth Light
Larson Electronics has released an explosion-proof integrated LED light fixture ideal for use in paint spray booths. Rated for hazardous locations, this light operates on 347V AC and has a temperature rating of T6, carrying paint spray booth certification.

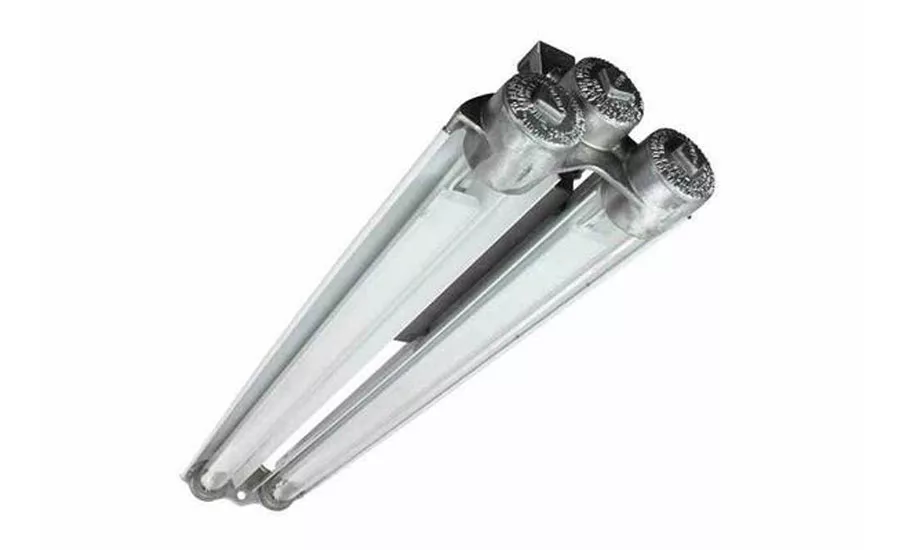

The EPL-48-2L-ITG-LED-347V explosion-proof integrated LED light fixture is rated for Class I, Divisions 1 and 2, Groups C and D; Class I, Division 2, Groups A, B, C and D; and Class II, Divisions 1 and 2, Groups E, F, and G hazardous locations and is approved for use in confined spaces. This unit has two, four-foot LED tube design bulbs producing 8,000 lumens of light that is brighter than standard T5HO lights and is rated at 50,000 hours of lamp life. These lamps are individually dimmable using Mark 7 0-10V style dimmer switches for maximum control over illumination.
The LED light is mounted to a tube made of extruded aluminum with a polycarbonate lens protecting the LEDs. It operates at 120V AC drawing on only 0.67 amps. This unit comes with standard mounting with brackets on either side of the fixture and an option for pendant mounting for suspension from ceilings. Suitable applications include use in paint spray booths, chemical manufacturing and gas processing plants, oil refineries, and more.
