250-Gallon Retention Mixer Supports High-Pressure Processing

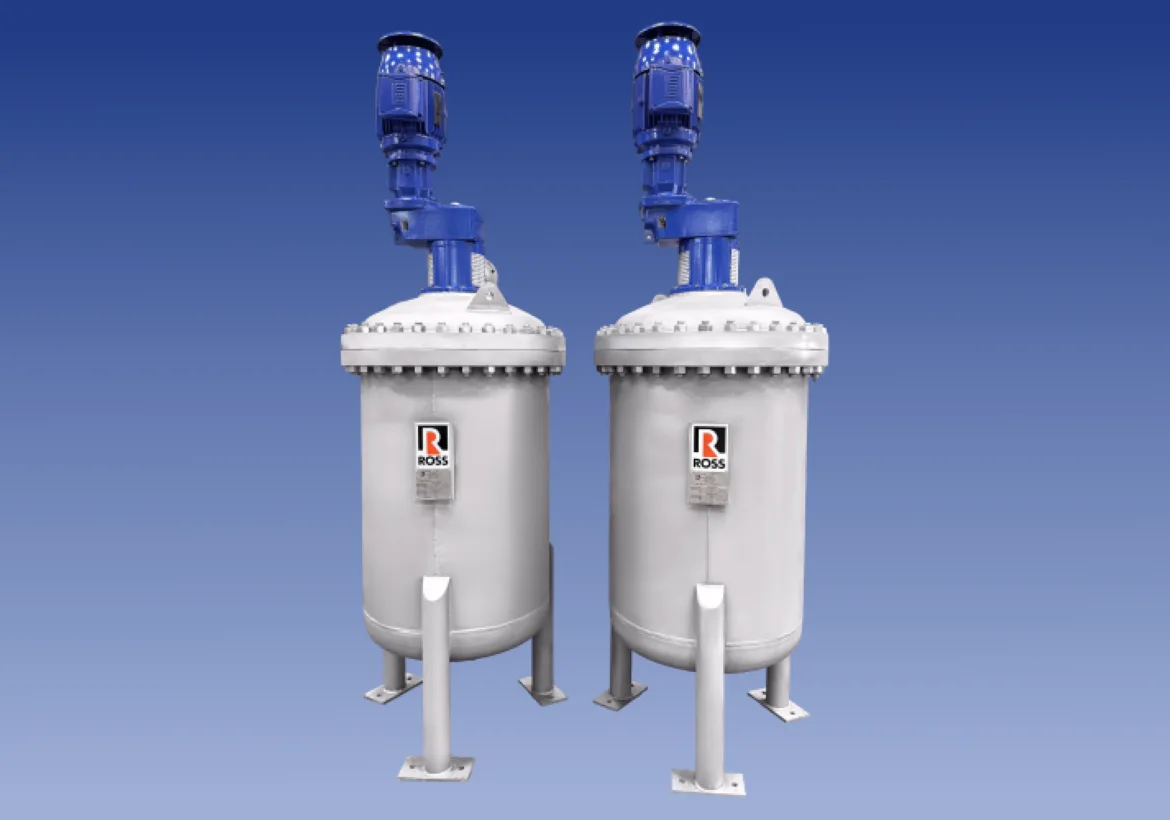

ROSS has introduced a 250-gal Retention Mixer designed to maintain product uniformity, prevent settling, maximize reaction yield and provide continuous agitation through storage and unloading.
The Type 304L stainless steel vessel is designed for operation up to 200 psi at 300 °F and is built and ASME stamped to Section VIII, Division 1 requirements for pressure service. Each vessel is hydrotested before shipment.
Mixing is provided by 15 specially designed agitator blades driven to 350 rpm by a 15-hp TEFC inverter-duty motor. Fourteen baffles enhance product movement throughout the vessel, while an angular-contact steady bearing supports the 17-4 PH shaft. The shaft is sealed with a dry-running single mechanical seal.
The vessel can be customized with nozzles for material additions, ventilation, drainage and instrumentation. ROSS Retention Mixers are available in capacities up to 5,000 gal.
Learn more about ROSS mixing and processing equipment.
Pressure-rated mixing and agitation equipment can help coatings and chemical manufacturers maintain consistency and control during processing, storage and transfer. Explore PCI coverage of Manufacturing Equipment.
